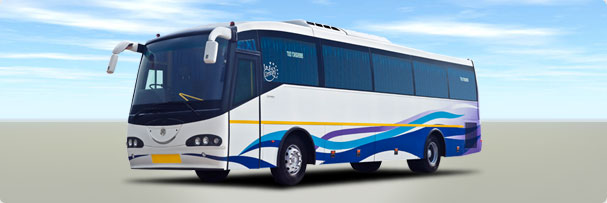

| Applications: | Intercity / Tourist |
|---|---|
| Engine: | 'H' Series CRS BS III Electronically controlled |
| Maximum Power: | 165 kW (225 hp) @ 2500 rpm |
| Maximum Torque: | 800 Nm @ 1400 - 1900 rpm |
| Gearbox: | 6 Speed, 6S 850 Synchromesh Overdrive Gearbox / Optional Leymatic |
| Clutch: | 381mm dia (15") Single Plate Dry Type, Hydraulic actuation with Clutch booster |
| Rear Axle: | Fully Floating, Single Speed Hypoid gear |
| Front Suspension: | Air Suspension with Shock absorber and Anti roll bar |
| Rear Suspension: | Air Suspension with Shock absorber and Anti roll bar |
| Steering: | Integral Power Steering |
| Brakes: | Full Air Dual Line with ABS and Retarder |
| Wheelbase: | 6200 mm |
| Overall Length: | 12000 mm |
| GVW: | 16200 kg |
| Seats: | Luxury reclining seats – 36+D with calf support & Driver berth | Luxury reclining seats – 40+D with Driver berth | Luxury reclining seats – 45+D |
| Body Structure: | All steel GI Tubular structure with anti rust coating |
| Side Panels: | Galvanized stretched panel |
| Skirt Panels: | Aluminum stretched panel |
| Roof hatch: | 2 Nos - One at front and rear |
| Front facia, Rear dome and bumper: | FRP Moulded |
| Roof Panel: | Aluminium panel |
| Passenger door: | Pneumatically operated out swing door |
| Luggage space: | Approx. 7 m3 |
| Air condition vents: | Available for all seats. Free flow directed in the hat rack |
