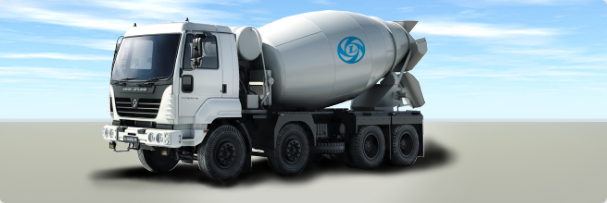

Applications: | RMC- Ready mix concrete |
---|---|
Engine: | H series - BS3 Turbocharged intercooled |
Power: | 225HP @ 2500 rpm |
Torque: | 800 Nm @ 1400 - 1900 rpm |
Clutch: | Axial type 381 mm dia with ceramic disc and actuated by clutch booster |
Transmission: | 9 SpeedGB - FGR: 8.83 & Crawler : 12.73. |
Suspension: | Semi elliptical multi-leaf at front and bogie with Straight Radius Rod at rear. |
Cabin: | Factory built G91 Day Cab |
Tyre: | 11.00 x 20-16 PR |
Max speed: | 81 kmph |
Gradeability: | 33% in CWG |
Wheelbase: | 5250 |
Body Capacity: | 10 cu.m RMC |
