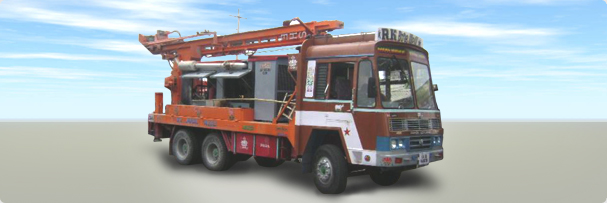

| Applications: | Drill rigs , Boompumps |
|---|---|
| Engine: | HA57L165 – CRS Engine |
| Power: | 230Hp @ 2500rpm |
| Torque: | 800 Nm@1400- 1900 rpm |
| Clutch: | 380 mm dia , Ceramic clutch disc |
| Transmission: | 9 speed synchromesh FGR 8.83:1 |
| Suspension: | Uprated Semi elliptic multileaf / Rear Bogie |
| Tyre: | 11x 20 Cross ply tyre |
| Max speed: | 80 kmph |
| Gradeability: | 46.00% |
| GVW: | 25T |
| Wheelbase: | 4900 mm |
